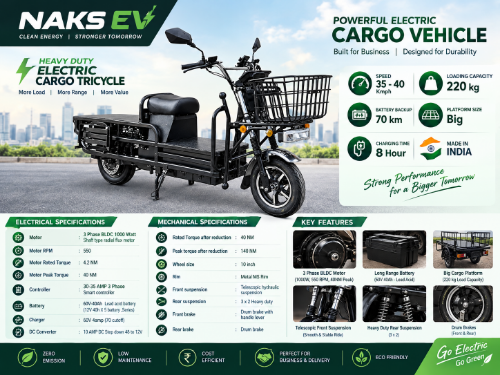

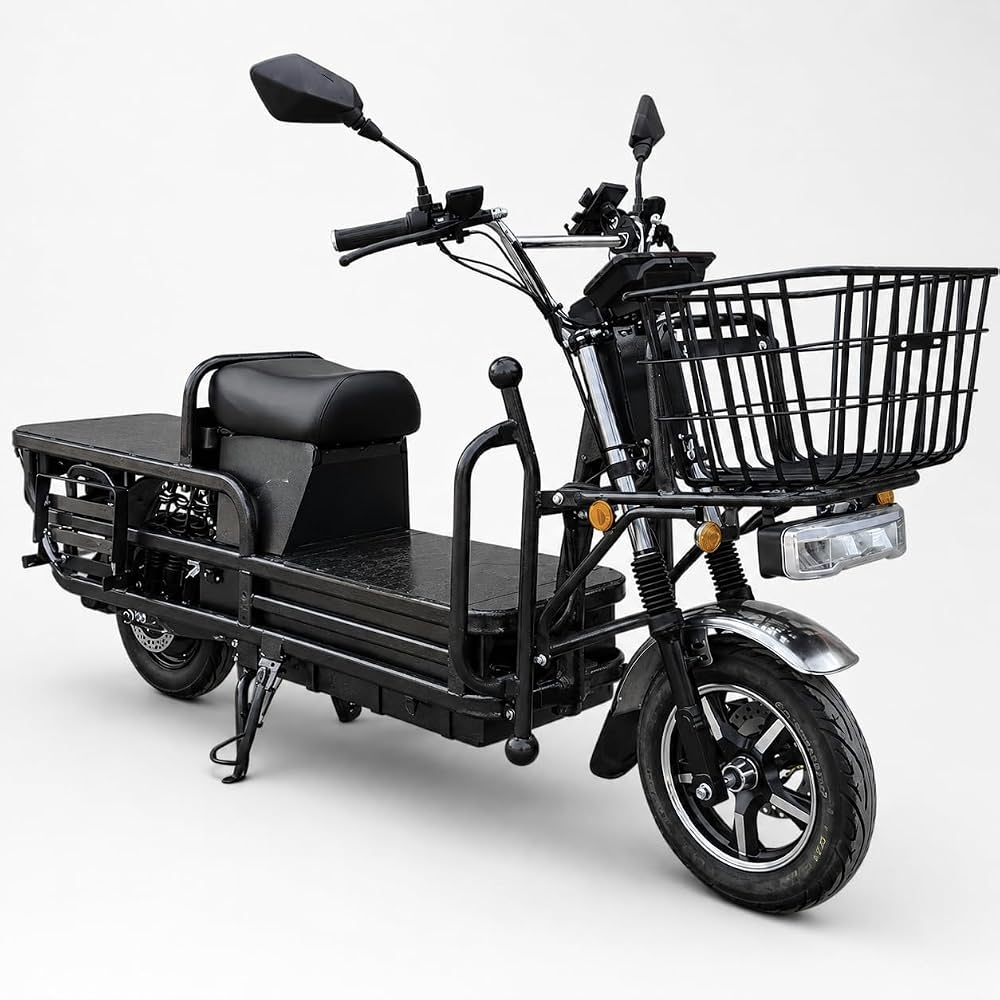

Sand-E Electric mini Loader | 2 Wheel Electric loader

Previous productRokyE Electric mini Loader ...

Next productNAKS 24v 350watt PMDC Ebicy...

Speed: 35-40 Kmph
Loading capacity : 220 kg
Battery backup : 70km
Plateform Size: Big
Charging time : 8 Hour
Made in INDIA


Electrical  Specificartion
Motor : 3 Phase BLDC 1000 Watt Shaft type radial flux motor
Motor RPM : 550
Motor Rated Torque: 4.2 NM
Motor PEak Torque : 40 NM
Controller: 30-35 AMP 3 Phase Smart controller
Battery : 60V-40Ah  Lead acid battery ( 12V 40h X 5 battery ,Series)
Charger : 60V 4amp ( 70 cutoff)
DC convrter : 10 AMP DC Step down 48 to 12V


Mechanical  Specificartion
Rated Torque after readucton : 40 NM
Peak torque after readuction : 140 NM
Wheel size : 10 inch
Rim : Metal MS Rim
Front suspension : Telescopic hydraulic suspension
Rear suspension : 3 x 2  Heavy duty
Front brake : Drum brake with handle lever
Rear brake : Drum brake
