This is a 24 volt 250 watt gear reduction motor kit compatible with a 9 tooth 1/8" bicycle chain sprocket. This motor is great for those wanting to make their own custom electric vehicle, whether it's a kids scooter or electric bicycle. This electric motor with gear reduction produces more low-end torque than any standard motor.
Motor Specifications
- Voltage: 24 Volt DC.
- Output: 250 Watt.
- RPM (after Reduction) – 300.
- Rated Current : 12.2A.
- Gear Ratio : 1:9.78.
- Torque Constant : 9 N.m (90 kg-cm).
- Torque stall : 45 N.m (550 kg-cm).
- Sprocket : 9Tooth 1/8" bicycle chain.
Controller Specifications
- Rated Voltage: 24 Volt DC.
- Rated Power: 250W.
- Maximum Peak Current: 20 Amps.
- Maximum continuous Current: 15 Amps.
- Throttle : 1-4V.
- Level Brake: high / low.
- Under Voltage Protection: 20.5 Volts.
- Includes attachments for motor, accelerator, brake, battery, battery charging, brake light, power loc

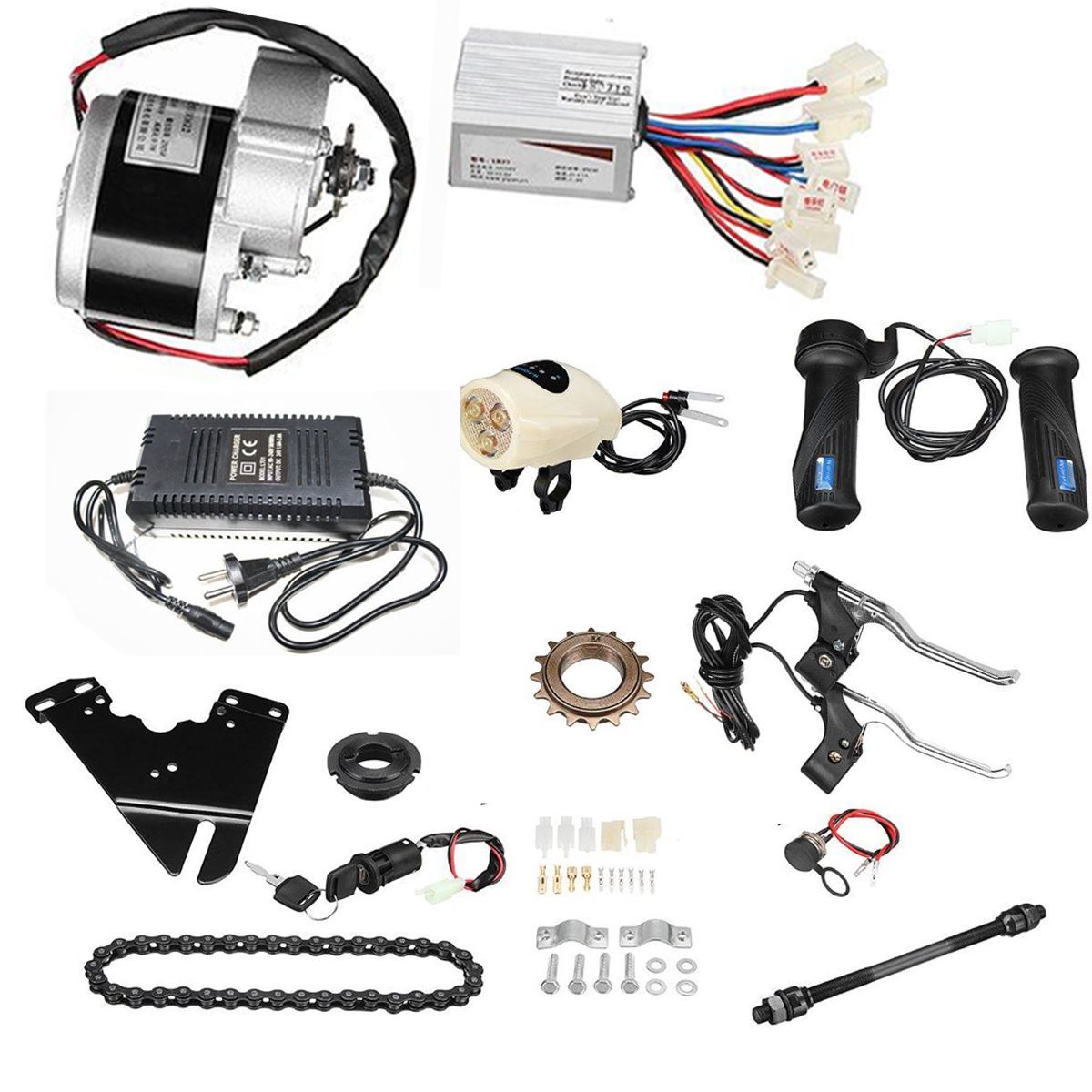

Items included as below.
1. 1pcs x DC 24V 250W motor
2. 1pcs x Motor controller
3. 1pcs x Chain
4. freewheel adapter and freewheel
5.1pcs x Mounting plate with bolts
6. 1pcs x Throttle handle
7. Brake lever
8. 1pcs x Head light with horn
9. 1pcs lock
10. Charger 24v 1.6Amp ( 12 month warranty )
11. 1pcs 24V-12Ah lithium battery loose pouch pack ( 12 month warranty )
